Globalization Pipeline for iOS

Yesterday we just tagged v1.0 of the Globalization Pipeline SDK for iOS. What can an iOS client do? Well, let’s build a simple app and find out.

Starting Out

First, I’ll launch XCode 8 and create a new workspace.

While that is launching, I’ll warn you that your author is only a recent graduate of the Swift playground, who once deployed some toy apps to a then-new iPhone 3GS. So, it’s been a while. Any suggestions for improvement are welcome. The actual SDK, however, was a team effort.

Today’s app will be a color mixer, to help artists mix their colors. You know, red and blue makes purple, and so on.

I will name the workspace gp-ios-color-mixer, and create a new single view app called GP Color Mixer. To simplify things, for now, I disable the checkbox “automatically manage signing.”

I want to include the new SDK. I’ll use Carthage to install it. Since I already have Homebrew installed, I only need to do

$ brew install carthage

Now I need a Cartfile that mentions the SDK. So I create one at the same level as my XCode project, containing:

github "IBM-Bluemix/gp-ios-client"

Following the Carthage instructions, I next run

$ carthage update

which results in

*** Fetching gp-ios-client
*** Checking out gp-ios-client at "v1.0"
*** xcodebuild output can be found in /var/folders/j9/yn_32djn36x4d4c2mvcr1kgm0000gn/T/carthage-xcodebuild.p2nKN2.log
*** Building scheme "GPSDK" in TestFramework.xcworkspace

So far so good. Looking in the Finder, I now have GPSDK.framework right where I expect.

I’ll add it under “Linked frameworks and Libraries”.

We also need to make sure the framework is available at runtime. To do that, we add a build phase with a one-line script: /usr/local/bin/carthage copy-frameworks with a single input file - $(SRCROOT)/Carthage/Build/iOS/GPSDK.framework

Will it build? I add this to the top of my generated ViewController.swift:

1
import GPSDK

I mentioned turning off code signing, but I still ran into some odd warnings:

1
2
3
4
5
A shell task (/usr/bin/xcrun codesign --force --sign - --preserve-metadata=identifier,entitlements "/Users/srl/Library/Developer/Xcode/DerivedData/gp-ios-color-mixer-evyxcmilwuakdmdvxqqpmmnzisnn/Build/Products/Debug-iphonesimulator/GP Color Mixer.app/Frameworks/GPSDK.framework") failed with exit code 1:
/Users/srl/Library/Developer/Xcode/DerivedData/gp-ios-color-mixer-evyxcmilwuakdmdvxqqpmmnzisnn/Build/Products/Debug-iphonesimulator/GP Color Mixer.app/Frameworks/GPSDK.framework: replacing existing signature
/Users/srl/Library/Developer/Xcode/DerivedData/gp-ios-color-mixer-evyxcmilwuakdmdvxqqpmmnzisnn/Build/Products/Debug-iphonesimulator/GP Color Mixer.app/Frameworks/GPSDK.framework: resource fork, Finder information, or similar detritus not allowed

Command /bin/sh failed with exit code 1

Following QA1940 I was able to make some progress by running xattr -cr './Carthage/Build/iOS/GPSDK.framework'. Now, ⌘R Run rewards me with a blank app window and no errors. Let’s write some code!

Applying myself to the App

By code, of course, I mean a trip to the storyboard. Let's add a launch icon, because we can.

Now, I add some static fields, two picker views (for the input colors), and a button for action.

I wrote Color.swift to handle the color mixing. It will only support mixing from three of the primary colors - Red, Yellow, Blue. Any other mixing turns into muddy brown. Playground tested, ready to go.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
enum Color : Int {
    case red = 0, orange, yellow, green, blue, purple, muddy;
    // r+y = o, y+b = g, b+r = p
    func simpleDescription() -> String {
    switch self {
        case .red:      return "red"
        case .orange:   return "orange"
        case .yellow:   return "yellow"
        case .green:    return "green"
        case .blue:     return "blue"
        case .purple:   return "purple"
        case .muddy:    return "muddy brown" // use this if we don't know how to mix a color
        // should be exhaustive
        }
    }

    /**
    * Mix the colors, return the result
    */
    func mix( with: Color ) -> Color {
    if( self == .muddy || with == .muddy ) {
        return .muddy // anything + mud = mud
    }
    if( with == self ) {
        return self  // identity!
    }
    switch self {
        case .red:
            switch with {
            case .yellow:   return .orange
            case .blue:     return .purple
            default:        return .muddy
            }
        case .yellow:
            switch with {
            case .red:      return .orange
            case .blue:     return .green
            default:        return .muddy
            }
        case .blue:
            switch with {
            case .red:      return .purple
            case .yellow:   return .green
            default: return .muddy
            }
        default: return .muddy
        }
    }
}

Time to wire it up. We create IBOutlets for each of the items. And, I’ll clear the result label just to verify that things are wired up. It runs OK, good.

Now, let’s set up the delegate stuff so that we can get the list of colors showing.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

class ViewController: UIViewController, UIPickerViewDelegate, UIPickerViewDataSource {

// …

// pickerview stuff
func numberOfComponents(in pickerView: UIPickerView) -> Int {
return 1;
}

func pickerView(_ pickerView: UIPickerView, numberOfRowsInComponent component: Int) -> Int {
return 3;
}

let primaryColors = [ Color.red, Color.blue, Color.yellow ]

func pickerView(_ pickerView: UIPickerView, titleForRow row: Int, forComponent component: Int) -> String? {
return primaryColors[row].simpleDescription()
}

Hey, just a little more code and we’re feature complete!

1
2
3
4
5
6
7
8
@IBAction func doMix(_ sender: Any) {
let color1 = primaryColors[mixOne.selectedRow(inComponent: 0)]
let color2 = primaryColors[mixTwo.selectedRow(inComponent: 0)]

let newColor = color1.mix(with: color2)

resultLabel.text = newColor.simpleDescription()
}

At least, feature complete in English.

I’ll next take stock of the resource strings we need to have translated, so that we can run them through the Globalization Pipeline. I’ll call this gp-color-mixer.json

1
2
3
4
5
6
7
8
9
10
11
{
    "red": "red",
    "orange": "orange",
    "yellow": "yellow",
    "green": "green",
    "blue": "blue",
    "purple": "purple",
    "muddy brown": "muddy brown",
    "title": "Color Mixer",
    "mix": "Mix"
}

Mixing the Blue

Time to fire up Bluemix. We are going to basically follow the Globalization Pipeline Quick Start Guide for the this part, which I will refer to.

First, I create an instance of the Globalization Pipeline. The name you give the instance doesn’t matter here.

Now I create a bundle named gp-color-mixer. This name does matter, as our iOS app will use it to access the content.

I’ll Upload the gp-color-mixer.json file above as the source English content, choosing JSON format for the upload. I pick a few languages for the target.

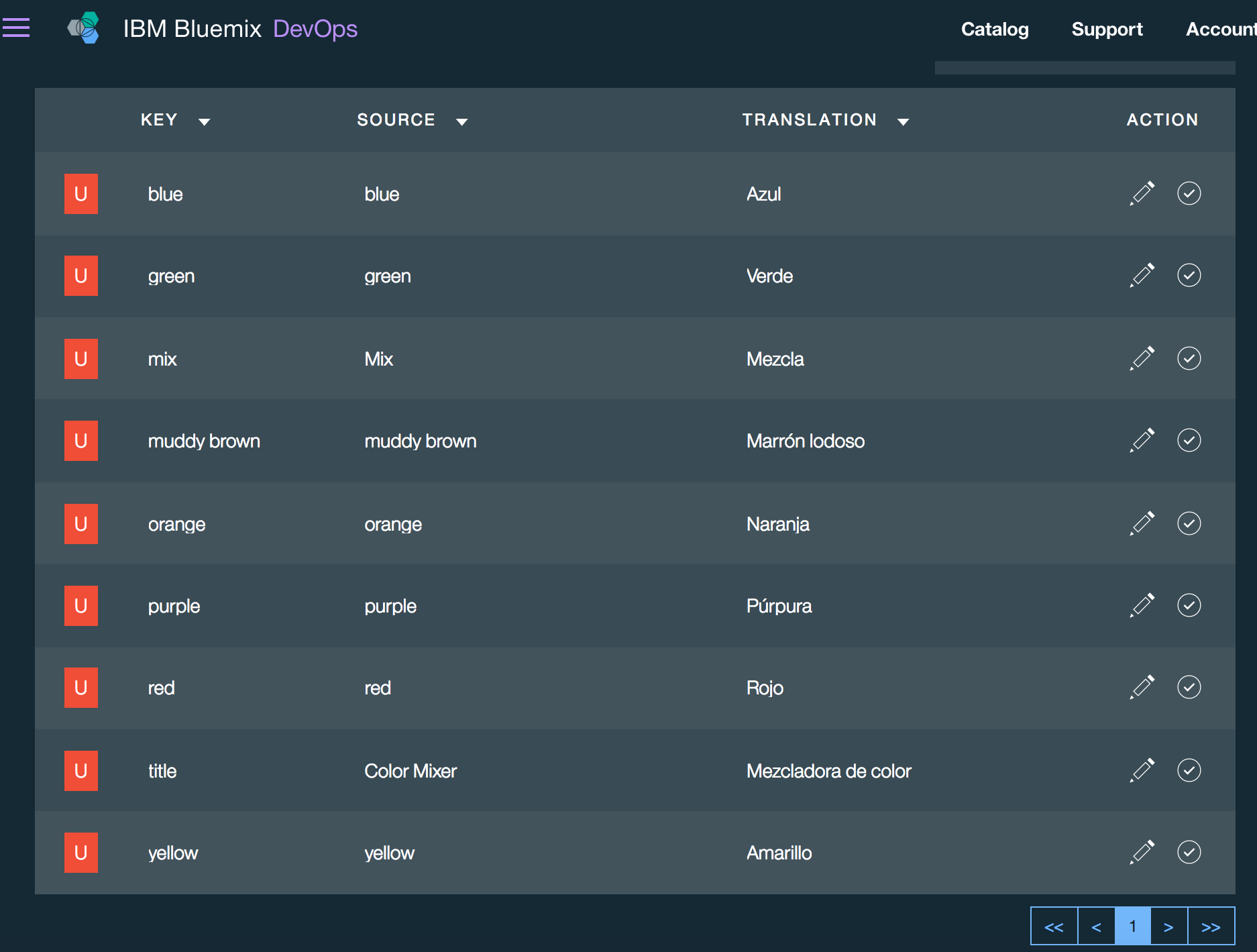

If I view the bundle, I can see our strings there, as well as translated versions.

The Globalization Pipeline offers this web UI to manage content, as well as powerful REST APIs for managing the translation workflow. I need to grant access to the iOS app so that it can read but not modify the translations. So, switching over to the API Users tab…

The result of creating the API user is that some access information is shown, something like the following:

API User ID: 5726d656c6f6e7761746572
Password: aHVudGVyNDIK
Instance ID: 77617465726d656c6f6e77617465726d
URL: https://something.something.bluemix.net/something/something

I take these and plug them into a new swift file named ReaderCredentials.swift like so: (this is a variant of ReaderCredentials-SAMPLE.swift in the SDK’s repo)

1
2
3
4
5
6
7
struct ReaderCredentials {
    static let userId       = "5726d656c6f6e7761746572";
    static let password     = "aHVudGVyNDIK";
    static let instanceId   = "77617465726d656c6f6e77617465726d";
    static let url          = "https://something.something.bluemix.net/something/something";
    static let bundleId     = "gp-color-mixer";
}

(Now, after putting my actual credentials in, and a brief offscreen struggle with .gitignore, I move on…)

Putting it all together

I’m almost done.

First, in the ViewController.swift, we initialize the GP service and start setting up a few UI items:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
let gp = GPService()

func get(key: String) -> String {
    return gp.localizedString(key, nil)
}

func get(color: Color) -> String {
    return get(key: color.simpleDescription())
}

override func viewDidLoad() {
    super.viewDidLoad()

    resultLabel.text = "Loading…"
    do {
        try gp.initService(url: ReaderCredentials.url,
            instanceId: ReaderCredentials.instanceId,
            bundleId:   ReaderCredentials.bundleId,
            userId:     ReaderCredentials.userId,
            password:   ReaderCredentials.password,

            languageId:nil,
            alwaysLoadFromServer: false,
            expireAfter: 0)

        // set up strings
        titleLabel.text = get(key: "title")
        mixButton.setTitle(get(key: "mix"), for: UIControlState.normal)
        mixButton.titleLabel?.text = get(key: "mix")
        resultLabel.text = "" // clear this
    } catch GPService.GPError.languageNotSupported {
        resultLabel.text = ("This language is not supported...")
    } catch GPService.GPError.requestServerError(let errorDescription) {
        resultLabel.text = ("Request server error: " + errorDescription)
    } catch GPService.GPError.HTTPError(let statusCode) {
        resultLabel.text = ("Request server error: HTTP \(statusCode)")
    } catch {
        resultLabel.text = ("Other error")
    }
}

Here we set up the service with our credentials. Then, we use our new get(key: ) function to set the title and mix button’s label.

There is also a get(color: ) variant that will translate one of our Color objects. So we use that for the actual mixing function:

1
2
3
@IBAction func doMix(_ sender: Any) {
    …
    resultLabel.text = get(color: newColor)

Similarly, we can get the UIPickerView to use localized color names by using this same function:

1
2
3
func pickerView(_ pickerView: UIPickerView, titleForRow row: Int, forComponent component: Int) -> String? {
    return get(color: primaryColors[row])
}

Looks good!

Conclusion

The iOS app will pick up changes if the translated content changes on the server. We could experiment with adding or removing languages, or updating translated keys.

You can find the source code at https://github.com/srl295/gp-ios-color-mixer.

Let me know if this works for you. This is my first post, and as I mentioned first app, in Swift so that’s a milestone. And, do let me know if^H^H what can be done to improve the sample app.

Thanks! Now go and make it global.
